My version of axle support |
Post Reply | Page 123 4> |
Author | |
marwayne
Senior Member Joined: 25 Oct 2011 Location: Edmonton AB Can Online Status: Offline Posts: 1002 |

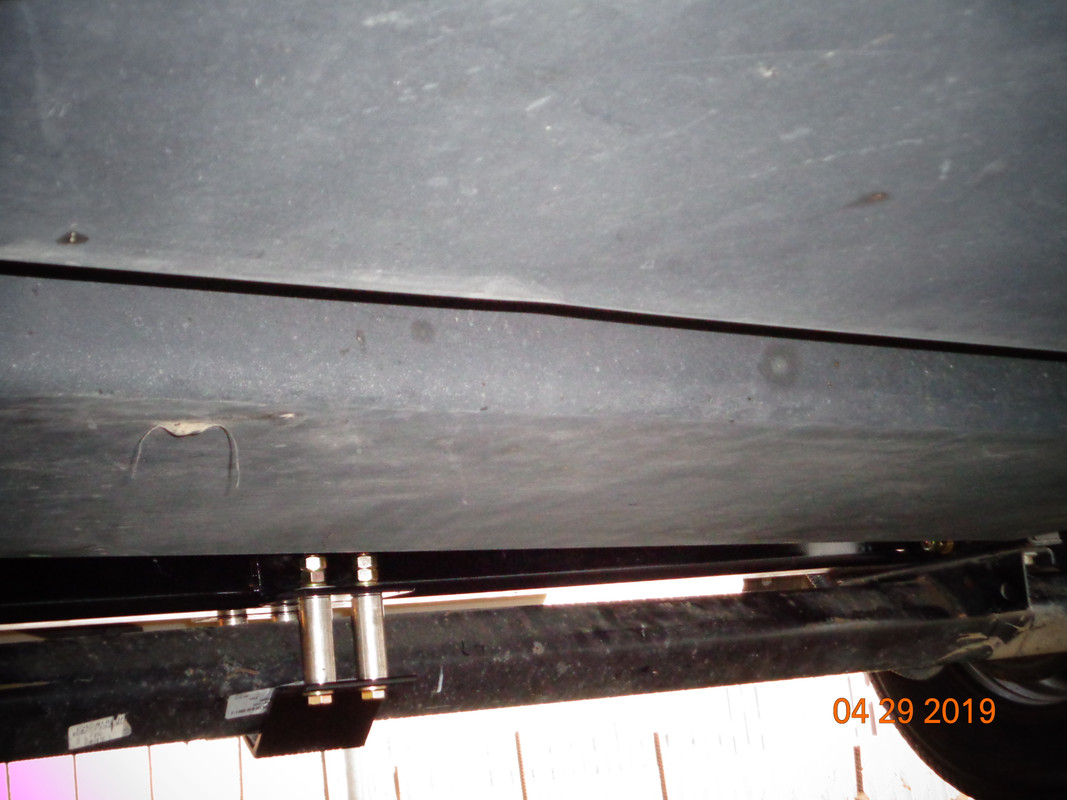

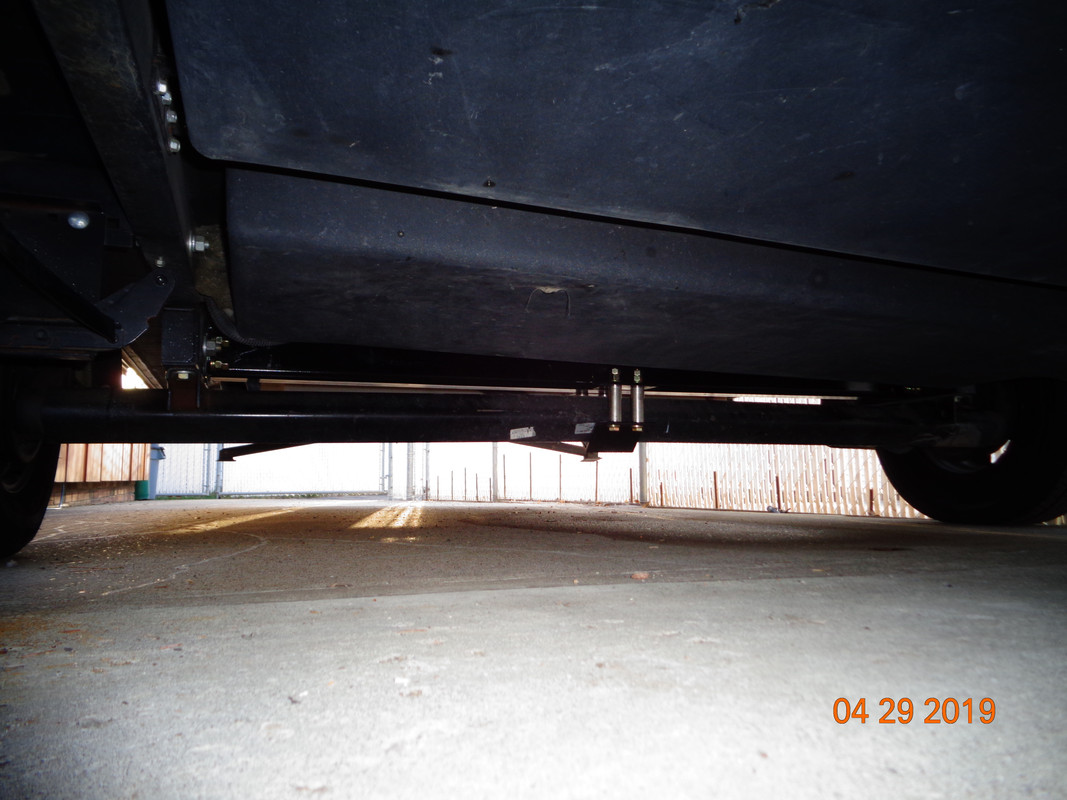

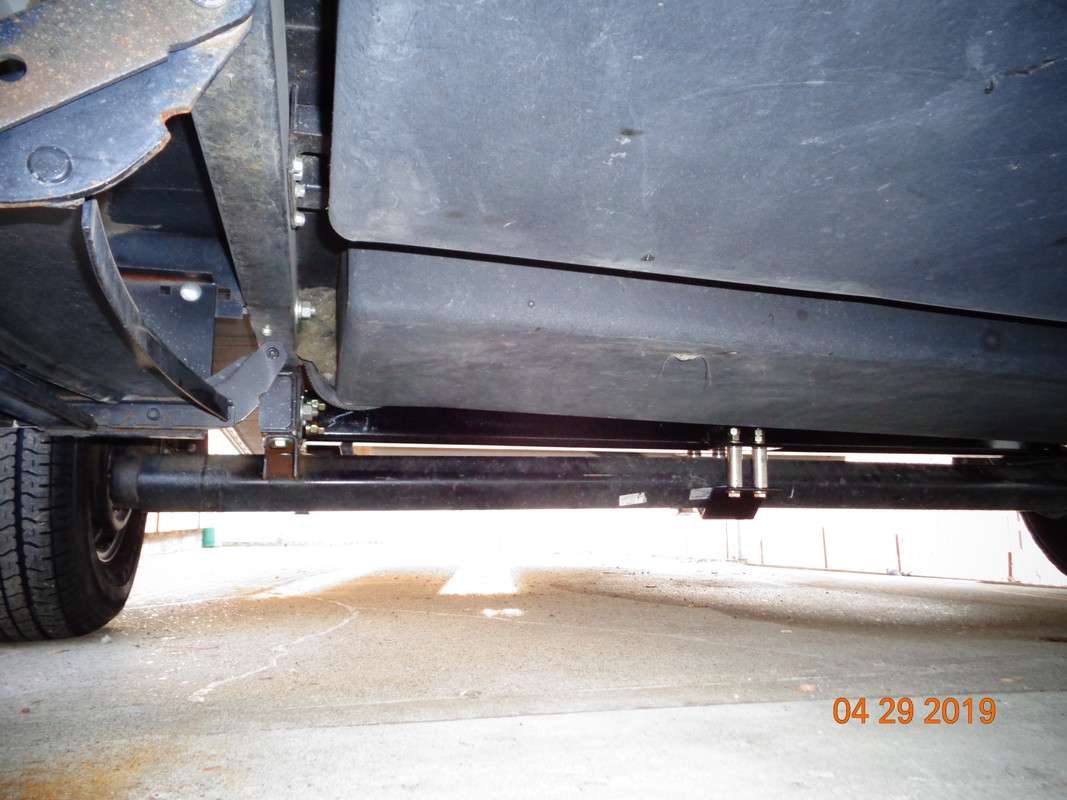

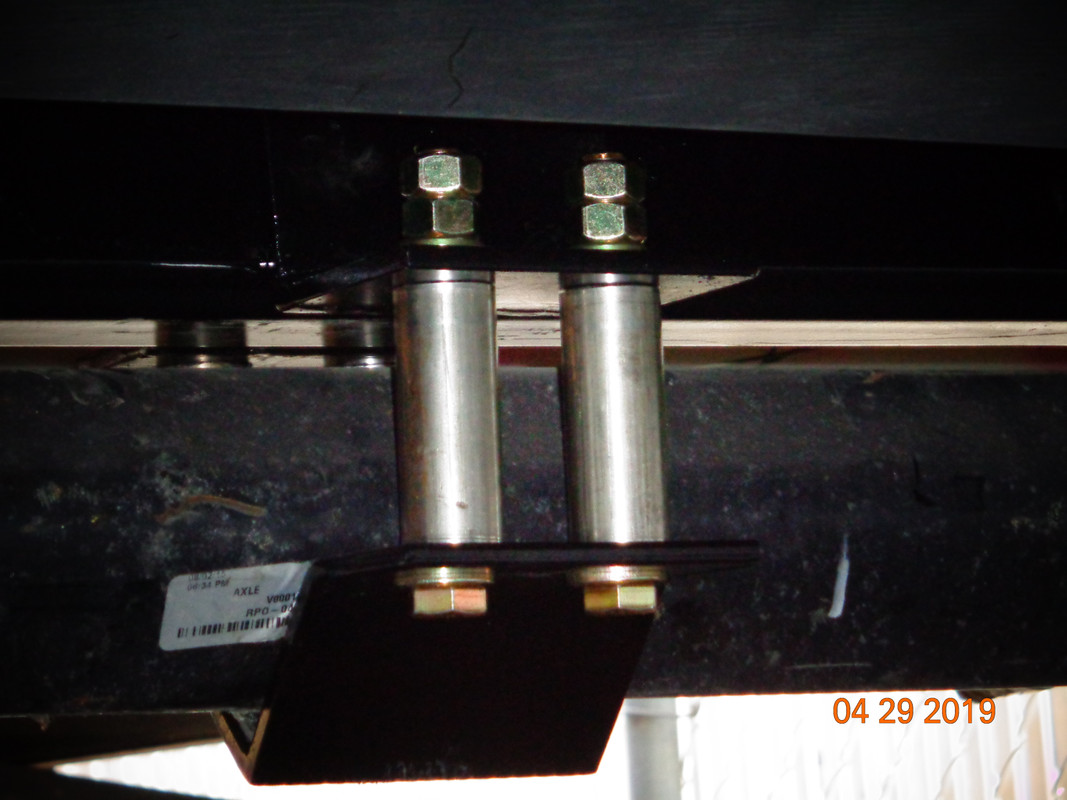

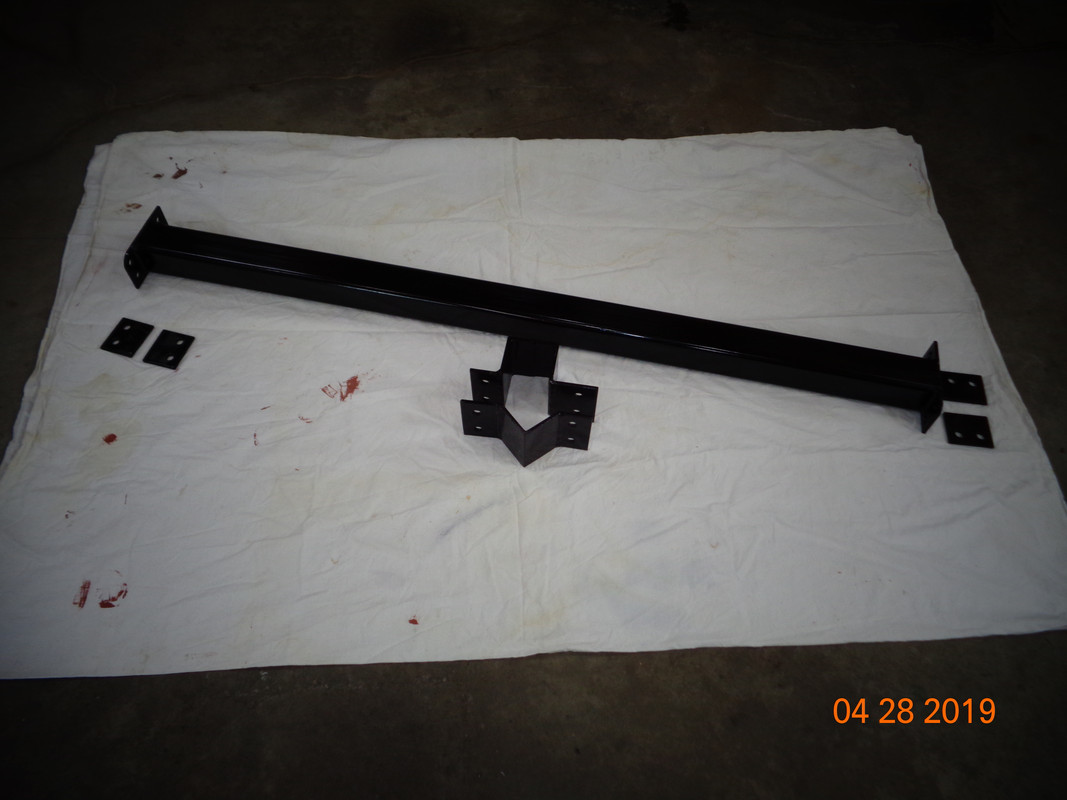

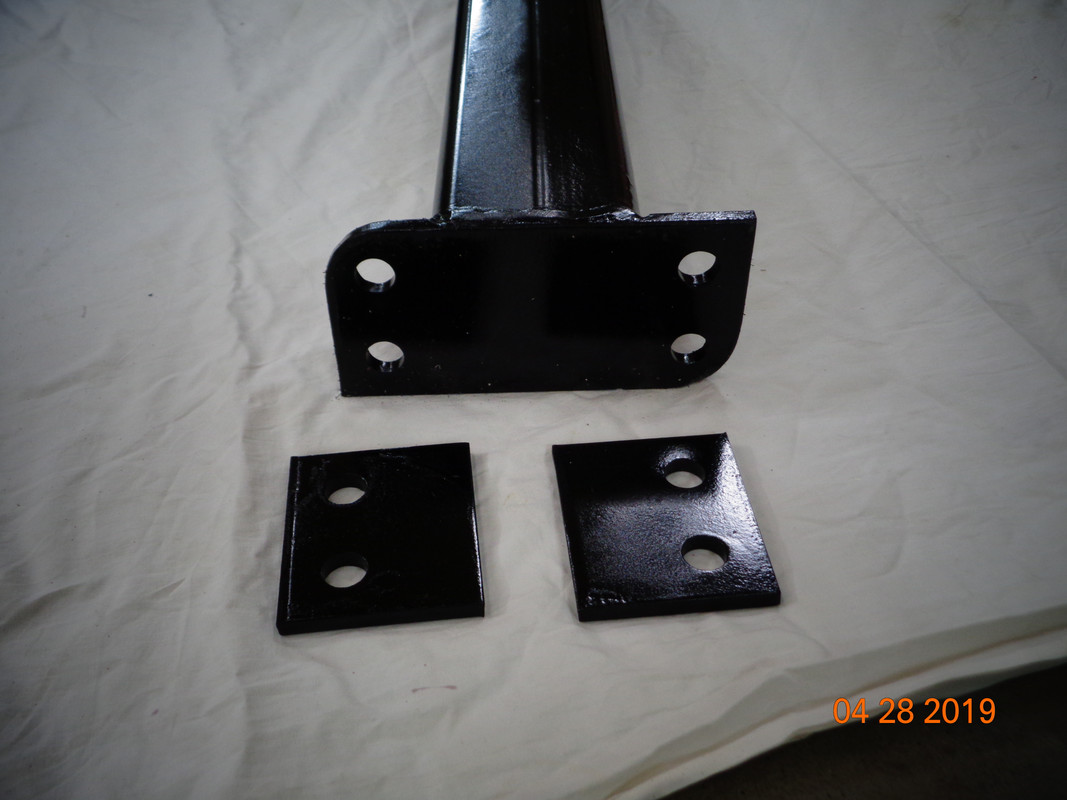

Topic: My version of axle support Posted: 29 Apr 2019 at 9:16pm |
If you want something done right, do it yourself.
2011 RP172, 2016 Tundra 5.7 Litre, Ltd. |
|
crw8sr
Senior Member Joined: 12 Oct 2017 Location: Omaha Nebraska Online Status: Offline Posts: 328 |
Posted: 29 Apr 2019 at 10:10pm |
You have to market that!!!!!!!!!!!!!!!!!
|
|
Chuck & Lyn
Izzy, Morkie. RIP Zoe Joy & Gracie, Yorkie 2018 R Pod 190 2019 Traverse In moments of adversity;when life's a total wreck, I think of those worse off than me and really feel like heck. |
|
Toyanvil
Senior Member Joined: 15 Feb 2019 Location: Bakersfield Online Status: Offline Posts: 157 |
Posted: 29 Apr 2019 at 10:37pm |
That looks GREAT
|
|
offgrid
Senior Member Joined: 23 Jul 2018 Online Status: Offline Posts: 5290 |
Posted: 30 Apr 2019 at 7:00am |
That looks great marwayne.
But..... The weakest points are just outboard of where the axle tube is attached to thr frame supports. The tube gets pushed up under load at those points. I might be missing something but I don't see in the pics where you have reinforced those areas.
|
|
1994 Chinook Concourse
1995 RV6A Experimental Aircraft 2015 Rpod 179 - sold |
|
Awchief
Groupie Joined: 04 May 2018 Location: Biloxi, MS Online Status: Offline Posts: 83 |
Posted: 30 Apr 2019 at 8:33am |
Lippert torsion axles come with an 11 year full warranty.
|
|
Michael
|
|
offgrid
Senior Member Joined: 23 Jul 2018 Online Status: Offline Posts: 5290 |
Posted: 30 Apr 2019 at 8:56am |
Interesting....
And useless to the end user. This is a warranty to the OEM (FR). Also it excludes overloading and unreasonable use.....as determined by Lippert in their sole discretion. So, FR would have to want to take on your case, and be willing to attempt to prove that your axle wasn't overloaded or encountered unreasonable use (like say hitting a curb). Good luck with that Basically, there is no joy in Mudville with warranties like this for an individual user. We can let one of our resident laywers weigh in but I'd guess you'd need to show a pattern of similar failures and iniitiate a class action suit to get any traction. And pretty clearly the axles aren't failing at loads below 3500 lbs just sitting there. The argument would be what is a reasonable safety factor to apply to an axle rating. I've seen numbers in the 2.5-4x range in the vehicle world to address bump loading, but it doesn't look like there is a single accepted standard. What the indiviudual manufacturers use internally is a trade secret. I think the Lippert axles as used on the rPods have a load factor of around 2.5 to 3.0, so toward the bottom end of the range, but not way out of the norm. Just my $0.02.
|
|
1994 Chinook Concourse
1995 RV6A Experimental Aircraft 2015 Rpod 179 - sold |
|
lostagain
Senior Member Joined: 06 Sep 2016 Location: Quaker Hill, CT Online Status: Offline Posts: 2595 |
Posted: 30 Apr 2019 at 9:05am |
For most of us the warranty is not worth a Venezuelan Bolivar Fuerte [if you don't know what that's worth, look it up just for fun] since it is not transferable to the owner of a second hand trailer. The warranty doesn't cover altered axles, such as was done by Toyanvil and marwayne. And it doesn't cover damage related to the attachment of the axle to the frame, which is precisely the problem with its use on the Pod.
|
|
Never leave footprints behind.
Fred & Maria Kearney Sonoma 167RB Our Pod 172 2019 Ford F-150 4x4 2.7 EcoBoost |
|
GlueGuy
Senior Member Joined: 15 May 2017 Location: N. California Online Status: Offline Posts: 2654 |
Posted: 30 Apr 2019 at 9:35am |
Unless there is something outboard of the frame members that I'm missing, then I'm inclined to agree with offgrid. The weak point in the axle design is the long moment arm outboard of the frame attach points. The basic issue is the wheels & tires & torsion arm are cantilevered outboard of the frame. The solution that Toyanvil came up with and the one that offgrid did to reinforce that area look like viable solutions to me.
|
|
bp
2017 R-Pod 179 Hood River 2015 Ford F150 SuperCrew 4WD 3.5L Ecoboost |
|
marwayne
Senior Member Joined: 25 Oct 2011 Location: Edmonton AB Can Online Status: Offline Posts: 1002 |
Posted: 30 Apr 2019 at 10:24am |
I did the same as Toyanvil. Toyanvil stated that nothing is attached to the frame but to the risers, that's what I did.Toyanvil attached on the outside, I attached it on the inside.
|
|
If you want something done right, do it yourself.
2011 RP172, 2016 Tundra 5.7 Litre, Ltd. |
|
StephenH
podders Helping podders - pHp Joined: 29 Nov 2015 Location: Wake Forest, NC Online Status: Offline Posts: 6326 |
Posted: 30 Apr 2019 at 11:51am |
It looks like yours is the middle ground between the other two designs. It will be interesting to read updates on how each of the three designs work in real life.
|
|
StephenH
Happy is the man that findeth wisdom,... ouR escaPOD mods Former RPod 179 Current Cherokee Grey Wolf 24 JS |
|
